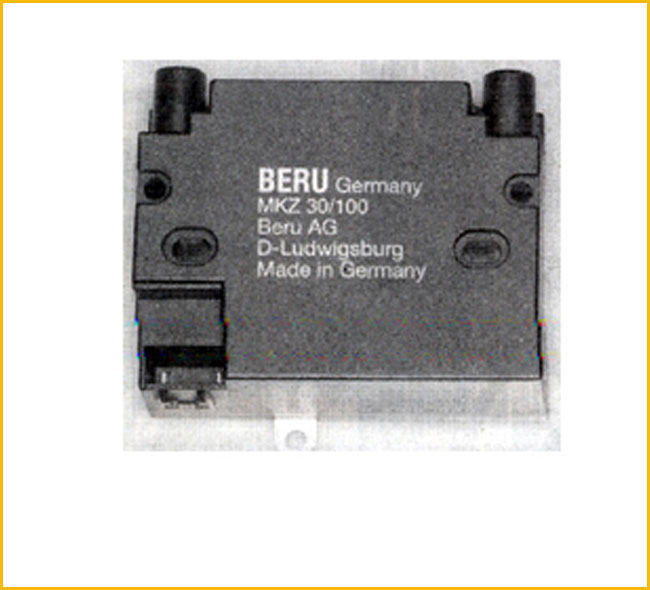

| Technical Data - Ignition System MKZ 100 - ( Part No. 0 096 600 017 ) | |||
| Operating Voltage | : | 230 V ( -15 % + 10% )50/60 Hz | |
| Primary Current | : | 0.22 A | |
| Output | : | 50 VA | |
| Connections | |||
| Primary | : | 2 x flat plug 2.8 mm | |
| Secondary | : | 2 x 4 mm drop-in pins | |
| Ignition Voltage | : | 2 x 7.5 kV | |
| Ignition Spark Energy | : | approx. 500 mJ | |
| Duty Cycle | : | 100 % | |
| Sparking distance | : | 1.5 - 3mm | |
| Operating temperature | : | 0-60 0C | |
| Fitting position | : | as required | |
| Weight | : | 300 g | |
